H41H/W lift check valve

H41H/W lift check valve
  • sell:021-32051999
  • sell:021-32050777
  • fax:021-66099555

Details

  • Product Introduction
  • Service Promise
  • Ordering Process

H41H / W lift check valve is used in the pipeline of petroleum, chemical industry and thermal power station with nominal pressure PN1.6-6.4MPa and working temperature-29-550 C. Suitable medium is water, oil, steam, etc.


Structure and characteristics


1, material selection, in line with domestic and foreign standards, the overall quality of materials is high.


2. The sealing pair is advanced and reasonable. The sealing surface of disc and seat is made of iron-based alloy or Stellite cobalt-based cemented carbide overlaying welding surface. It has good wear resistance, high temperature resistance, corrosion resistance, scratch resistance and long service life.


3, the product is designed and manufactured according to the national standard GB/T12235.


4. Various pipe flange standards and flange sealing types can be adopted to meet various engineering requirements and user requirements.


5. The valve body material variety is complete, the gasket may reasonably select according to the actual working condition or the user request, can apply to each kind of pressure, the temperature and the medium working condition.


Check valves with different structure and connection forms can be designed and manufactured according to user's requirements for matching various equipment.


Application specification


設計與制造
GB/T12235
連接端尺寸
結構長度
GB/T12221
法蘭尺寸
JB/T79
檢驗與試驗
JB/T9092
材料
碳鋼
GB/T12229
不銹鋼
GB/T12230
合金鋼
Q/ZB66
標志
GB/T12220
供貨
JB/T7928


Material of main parts


閥體
閥蓋
閥瓣
閥座
適用介質
適用溫度
(≤℃)
WCB
WCB+D507Mo
WCB+D577
水、油品、蒸汽
425
ZG1Cr18Ni9Ti
0Cr18Ni9+
Stellite12
0Cr18Ni9+
Stellite6
銷酸類
200
ZG1Cr18Ni2Mo2Ti
CF8M+Stellite12
ZG1Cr18Ni2Mo2Ti
磷酸、醋酸類、混酸
200
ZG00Cr17Ni14Mo2
CF3M+Stellite12
CF3M+Stellite6
尿素、甲銨液、磷酸
200
ZG1Cr5Mo
ZG1Cr5Mo+
Stellite12
ZG1Cr5Mo+
Stellite6
水、油品、蒸汽
550

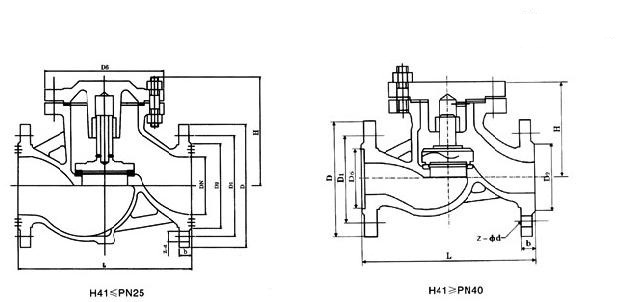

Main dimensions


型號
公稱壓力PN
(MPa)
公稱通徑DN(mm)
尺 寸(mm)
重量
(Kg)
L
D
D1
D2
b
H
Z-d
H41H-16C
H41W-16P
H41W-16R
1.6
25
160
115
85
65
16
71
4-14
3.3
32
180
135
100
78
18
84
4-18
5.O
40
200
145
110
85
18
96
4-18
6.3
50
230
160
125
100
20
115
4-18
8.9
65
290
180
145
120
20
145
4-18
13.2
80
340
195
160
135
22
156
8-18
24
100
350
21 5
180
155
24
170
8-18
48
125
400
245
210
185
26
201
8-18
60
150
480
280
240
210
26
238
8-23
95



型號
公稱壓力PN(MPa)
公稱通徑DN(mm)
尺 寸(mm)
重量
L
D
D1
D2
D3
b
H
Z-d
(Kg)
H41H-25C
H41W-25P
H41W-25R
2 5
20
150
105
75
55
105
16
105
4-14
5.5
25
160
115
85
65
115
16
115
4-14
6
32
180
135
100
78
130
18
130
4-18
9.1
40
200
145
110
85
145
18
135
4-18
11
50
230
160
125
100
155
20
150
4-18
15.2
65
290
180
145
120
180
22
160
8-18
22
80
310
195
160
135
1 95
22
170
8-18
30
100
350
230
190
160
230
24
195
8-23
44
125
400
270
220
188
270
28
255
8-25
65
150
480
300
250
218
300
30
255
8-25
99
