TB adjustable bimetallic drain valve

TB adjustable bimetallic drain valve
  • sell:021-32051999
  • sell:021-32050777
  • fax:021-66099555

Details

  • Product Introduction
  • Service Promise
  • Ordering Process

TB3F, TB5F, TB6F, TB111F adjustable bimetal sheet temperature adjustable steam traps are suitable for radiators, heat exchangers, jacketed spirals, heating coils, dryers, disinfectors and so on. The discharge temperature of the bimetal thermo-regulated steam trap can be adjusted again, the installation posture is free, the internal stainless steel is all-stainless steel, and the high-temperature clean water is used as water seal, which can effectively reduce the steam leakage, act sensitively and resist water hammer without noise, and the excellent structure of the emptying performance is simple and easy to maintain. It is suitable for high-temperature steam pipeline.


Characteristic


1, the new SCCV closed system design, reliable closure, long life.


2, the discharge temperature can be adjusted to effectively utilize sensible heat in high temperature condensate, and the energy saving effect is remarkable.


3, the discharge temperature can be carried out when the pipeline network is running, and it can be installed at any angle.


4, there is always high temperature condensate before the valve, forming reliable water seal and no steam leakage.


5, anti water hammer, air exhaust performance is excellent.


6, no noise during the movement, which is good for protecting the environment.


7. At the beginning of ventilation, all the valves are opened, and the low-temperature condensate and air are quickly removed, thus greatly shortening the start-up time of the equipment.


8. All internal parts are made of stainless steel, corrosion resistance and cavitation.

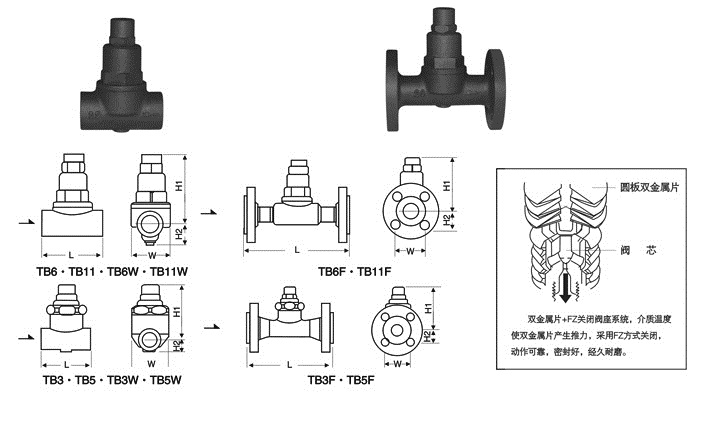

Main technical parameters
產(chǎn)品型號(hào)
公稱通徑DN
連接方式
使用壓力Mpa
MAX允許溫度℃
調(diào)整溫度范圍℃
外型尺寸
參考重量kg
L
H1
H2
W
TB6
15-20
25
螺紋
0.01-1.6
220
50-180
90
95
108
25
63
1.8
TB6F
15-20
25
法蘭
0.01-1.6
220
50-180
150
160
230
108
25
63
3.2
3.9
5.6
TB6W
15-20
25
承插焊
0.01-1.6
220
50-180
90
95
108
25
63
1.8
TB11
15-20
25
螺紋
0.01-1.6
220
50-190
90
95
108
25
63
1.8
TB11F
15-20
25
32-50
法蘭
0.01-1.6
220
50-190
150
160
230
108
25
63
3.2
3.9
5.6
TB11W
15-20
25
承插焊
0.01-1.6
220
50-190
90
95
108
25
63
1.8
TB3
15-20
25
螺紋
0.01-1.6
350
50-190
80
85
90
23
56
1.5
TB3F
15-20
25
法蘭
0.01-1.6
350
50-190
150
160
90
23
56
3.3
4.2
TB3W
15-20
25
承插焊
0.01-1.6
350
50-190
80
85
90
23
56
1.5
TB5
15-20
25
螺紋
0.01-2.1
350
50-200
80
85
90
23
56
1.5
TB5F
15-20
25
法蘭
0.01-2.1
350
50-200
150
160
90
23
56
3.3
4.2
TB5W
15-20
25
承插焊
0.01-2.1
350
50-200
80
85
90
23
56
1.5
